Vessy Hydropower Barrier
Constructed: 2008
Classification: Industrial Scale Intake or Tailrace

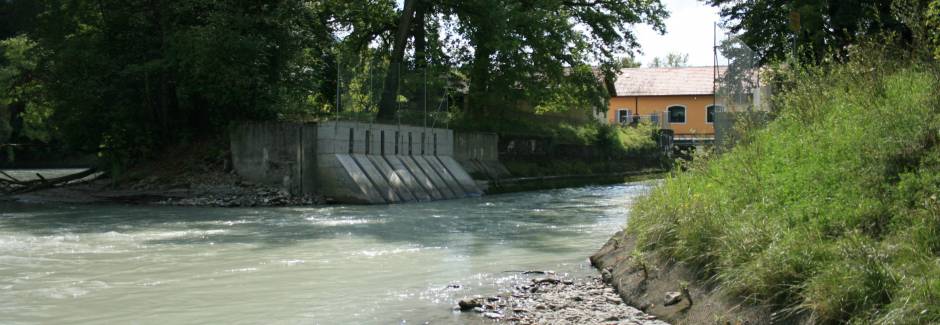

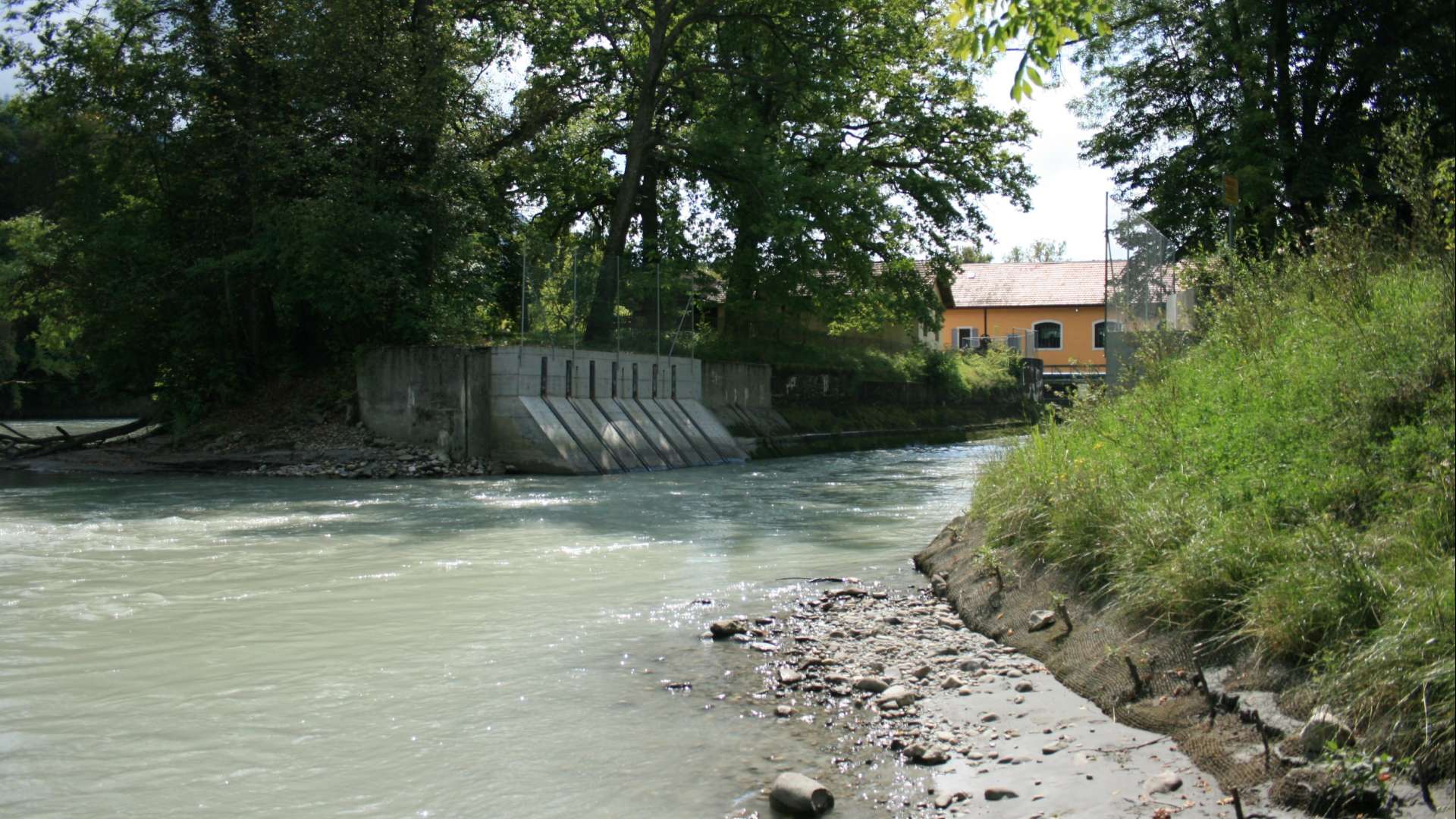

Smith-Root designed a tailrace barrier to prevent fish from entering turbines.
Smith-Root was engaged by Services Industriel de Geneva to design an electric barrier to prevent fish from the Arve river entering the Centrale Hydroelectrique de Vessy powerstation tailrace and becoming entrained in the low head turbine draft tubes.

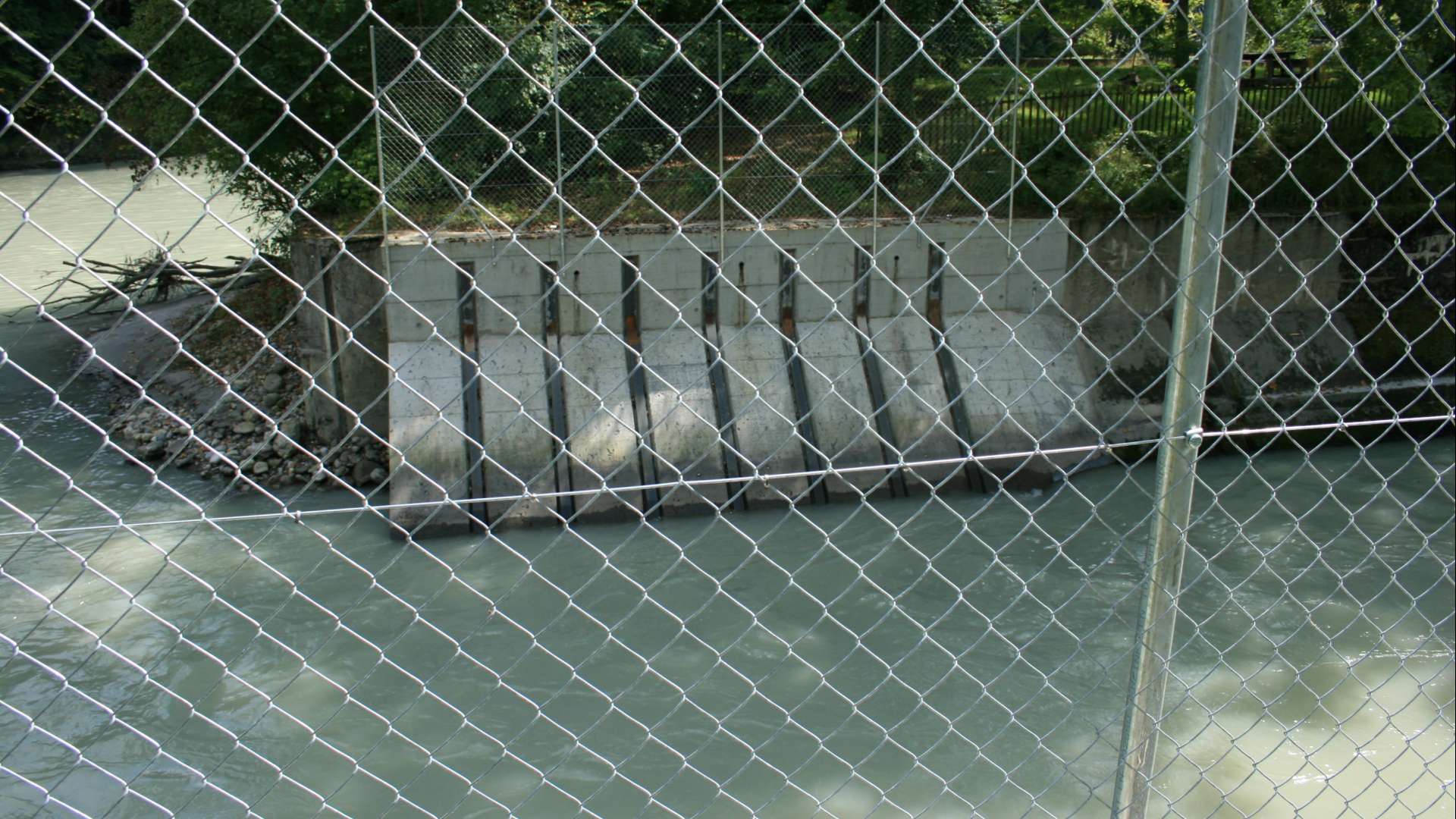

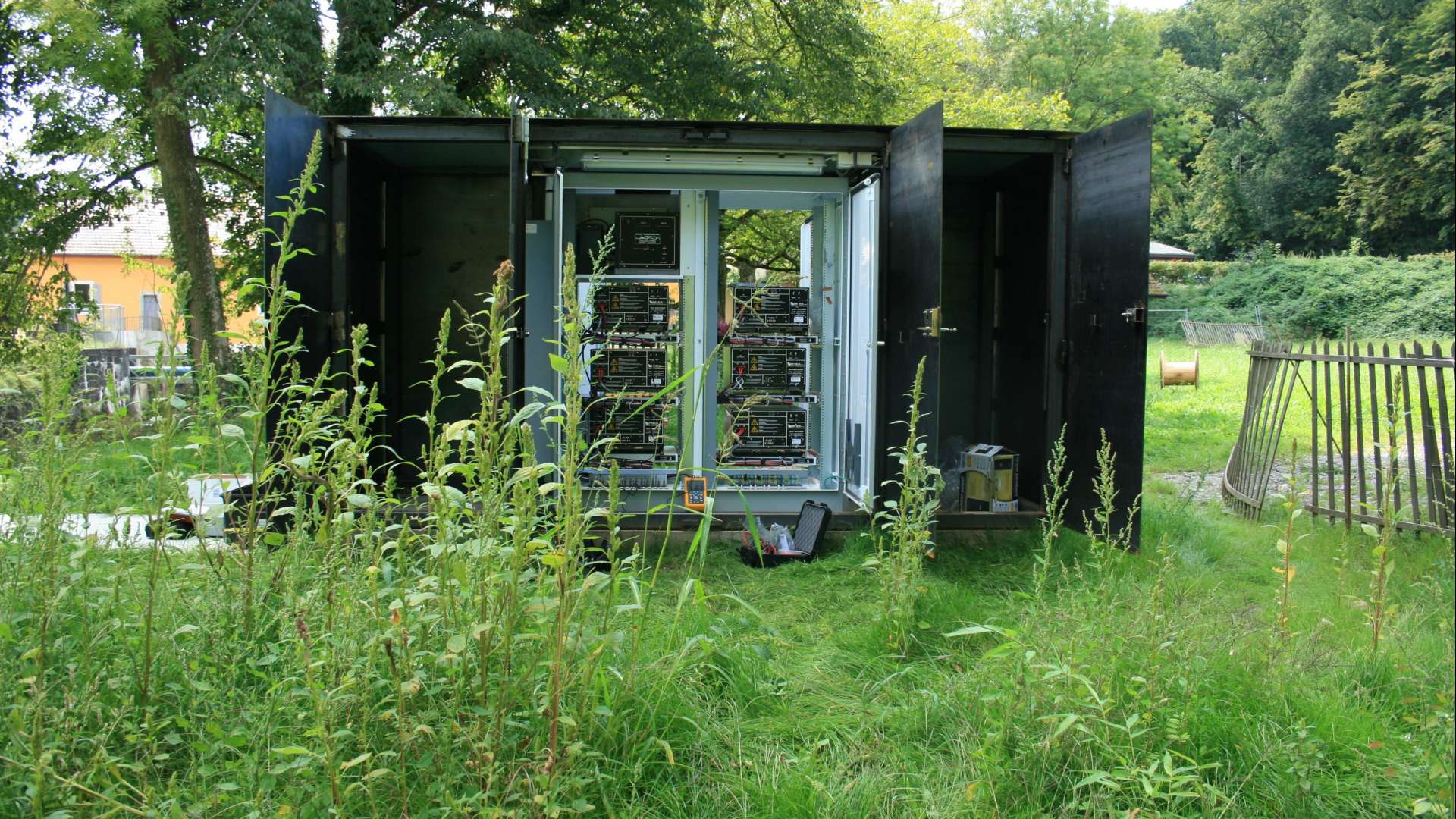

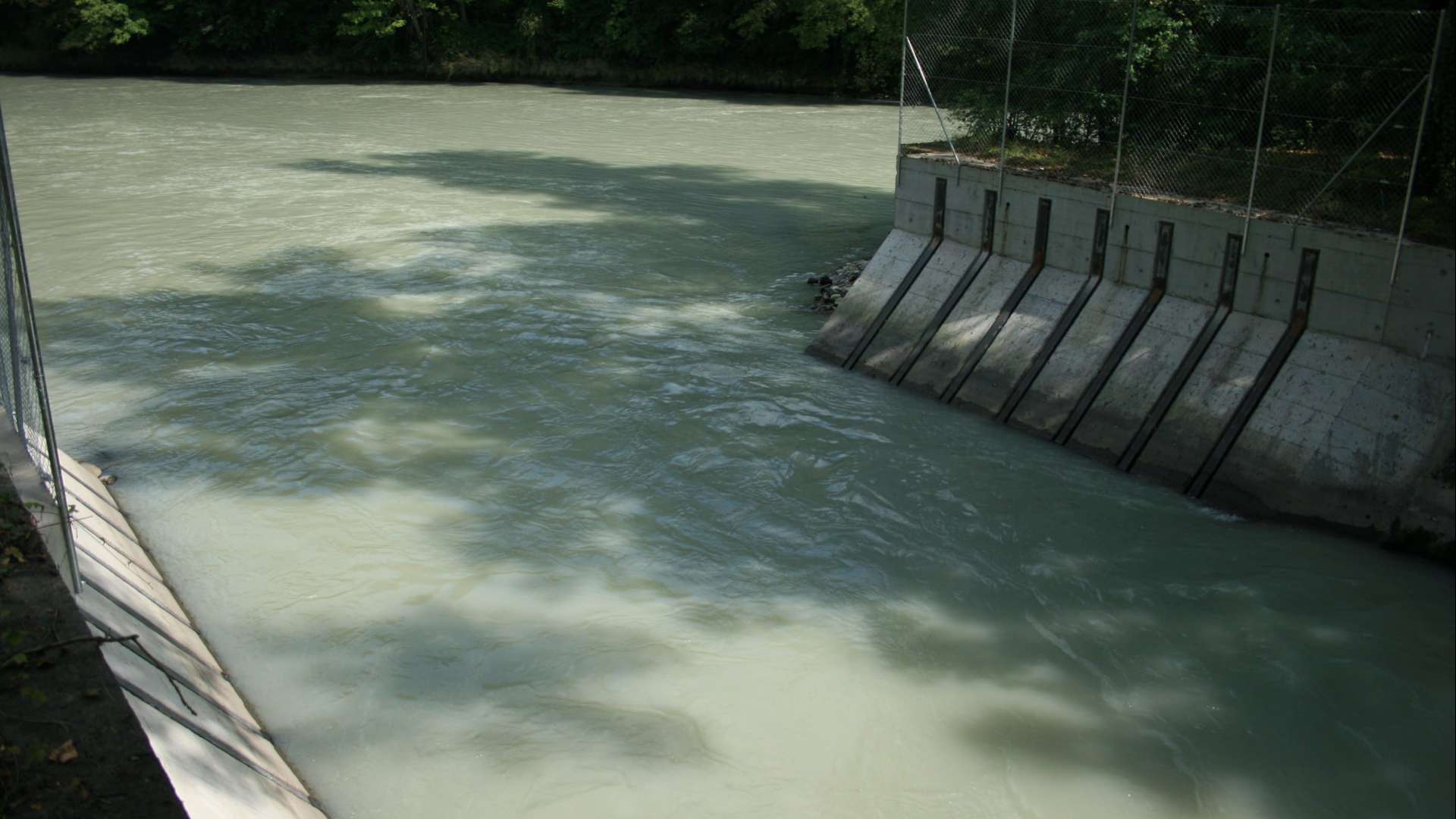

The seven steel flat bar electrodes are sidewall and bottom mounted into an Insulcrete™ liner. Smith-Root’s 1.5kVA-POW European Union-certified pulsators provide the electric field. Construction was contracted by the owner from the Smith-Root drawings.
Independent testing using tagged fish verified the effectiveness of the system.
Services Provided
- Coordination with Services Industriel de Geneva
- Civil and structural design of barriers
- Electrical and electronic design of the pulsators and power supply systems
- Supply of electronics
- Regular maintenance
Gallery
Click image to enlarge.
Location: Geneva, Switzerland
Site Characteristics
| Pulsators | Pulsator Qty | Power Output | Water Depth | Waterway Width | Water Velocity | Conductivity |
|---|---|---|---|---|---|---|
| 1.5kVA POW | 6 | 9.0 kW max. | 4 feet | 33 feet | 3 ft./s | 240 µs/cm max. |
Specifications subject to change without notice.
