Lake Christina Barrier
Constructed: 1991
Classification: Lake

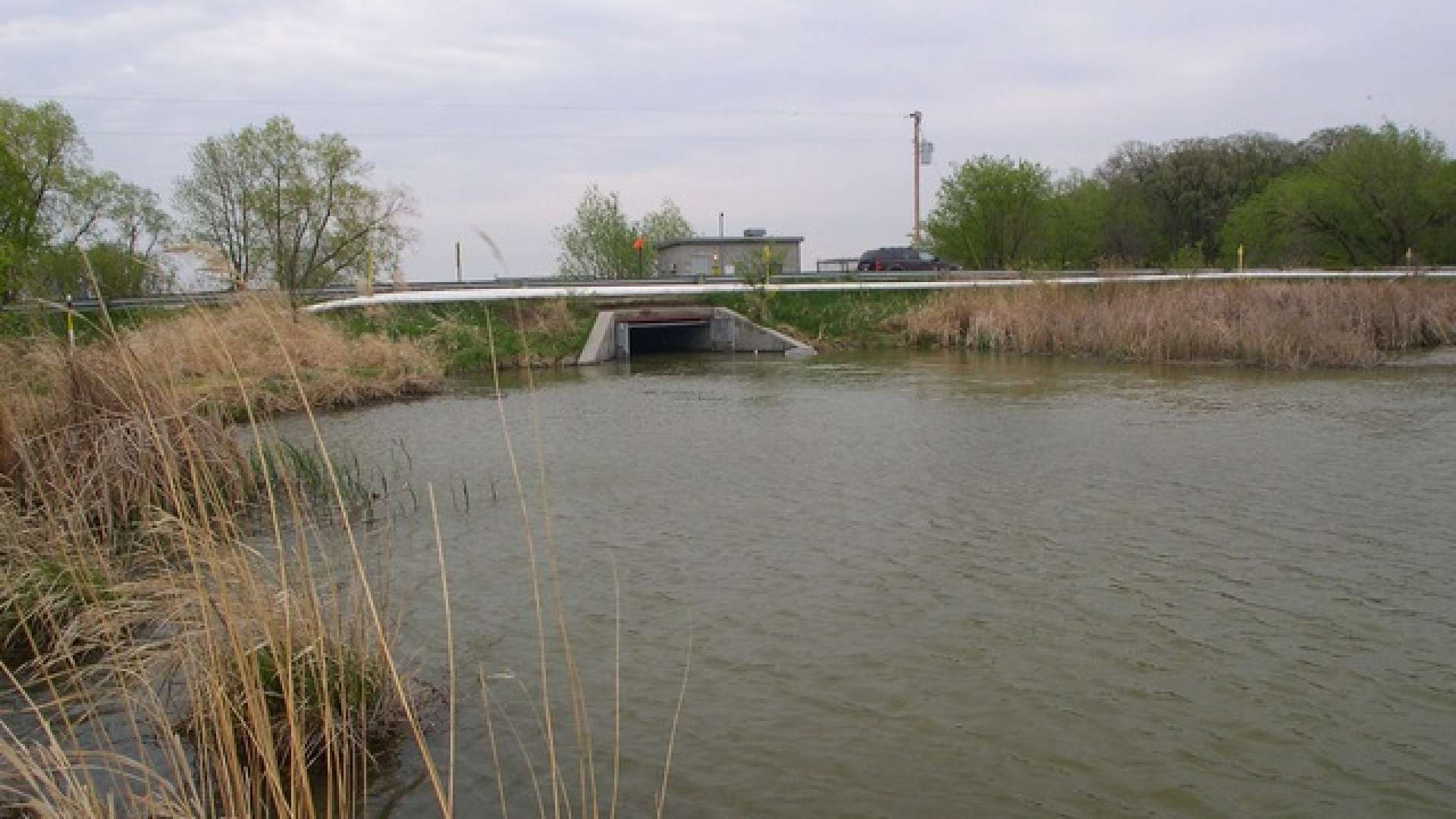

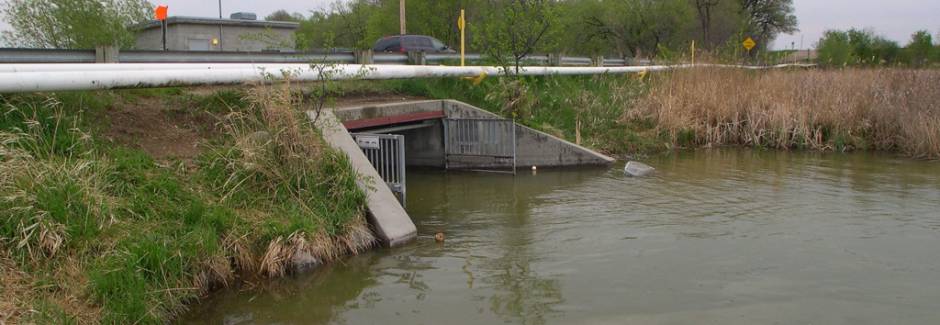

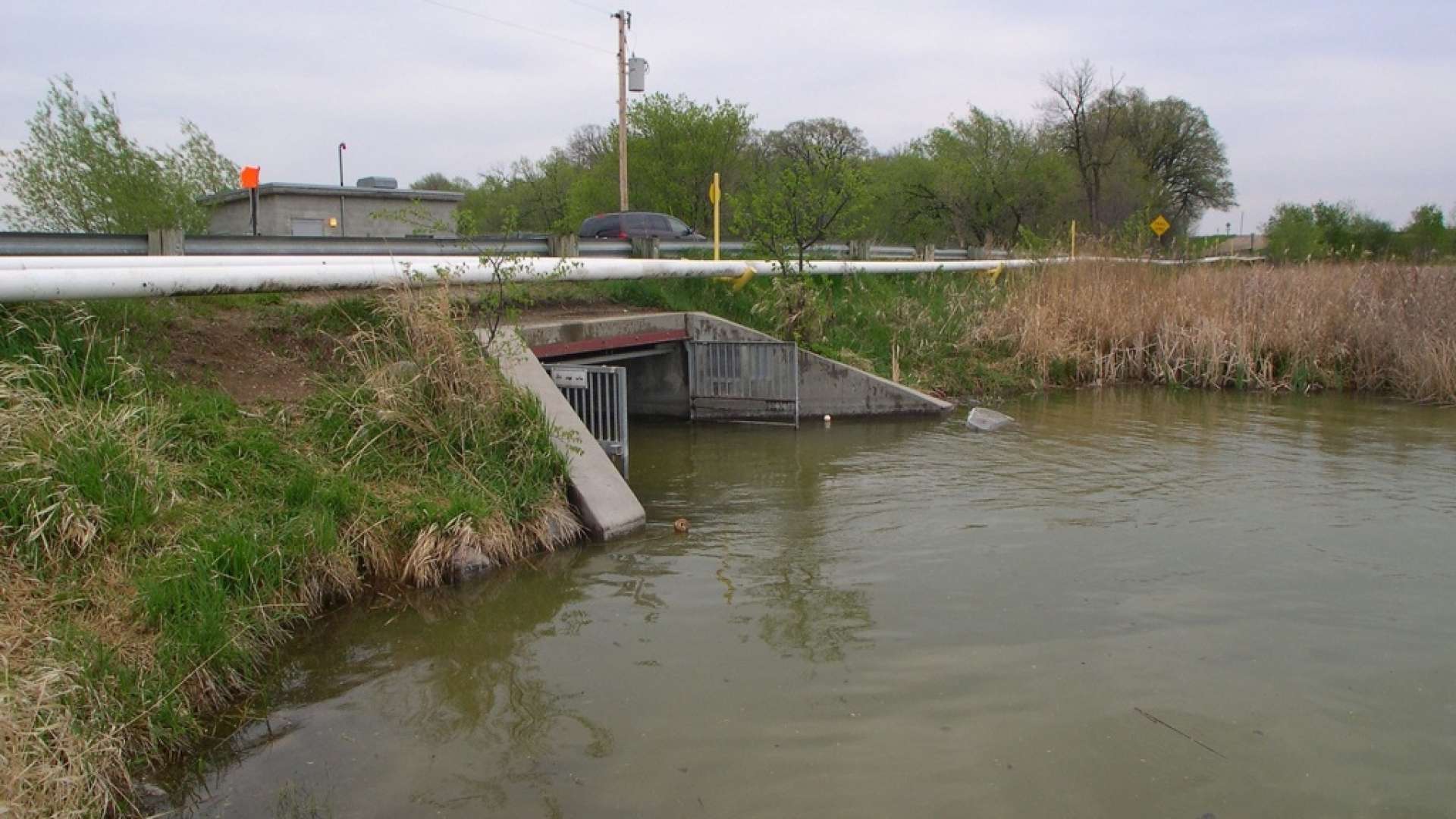

Smith-Root constructed a concrete culvert to include a barrier for exclusion of invasive species.
This turn-key project included the design and construction of a 10 foot x 5 foot rectangular concrete culvert. Seven steel flat bar U-shaped bolted electrodes are located three feet apart in slots in the Insulcrete™ walls and base slab.

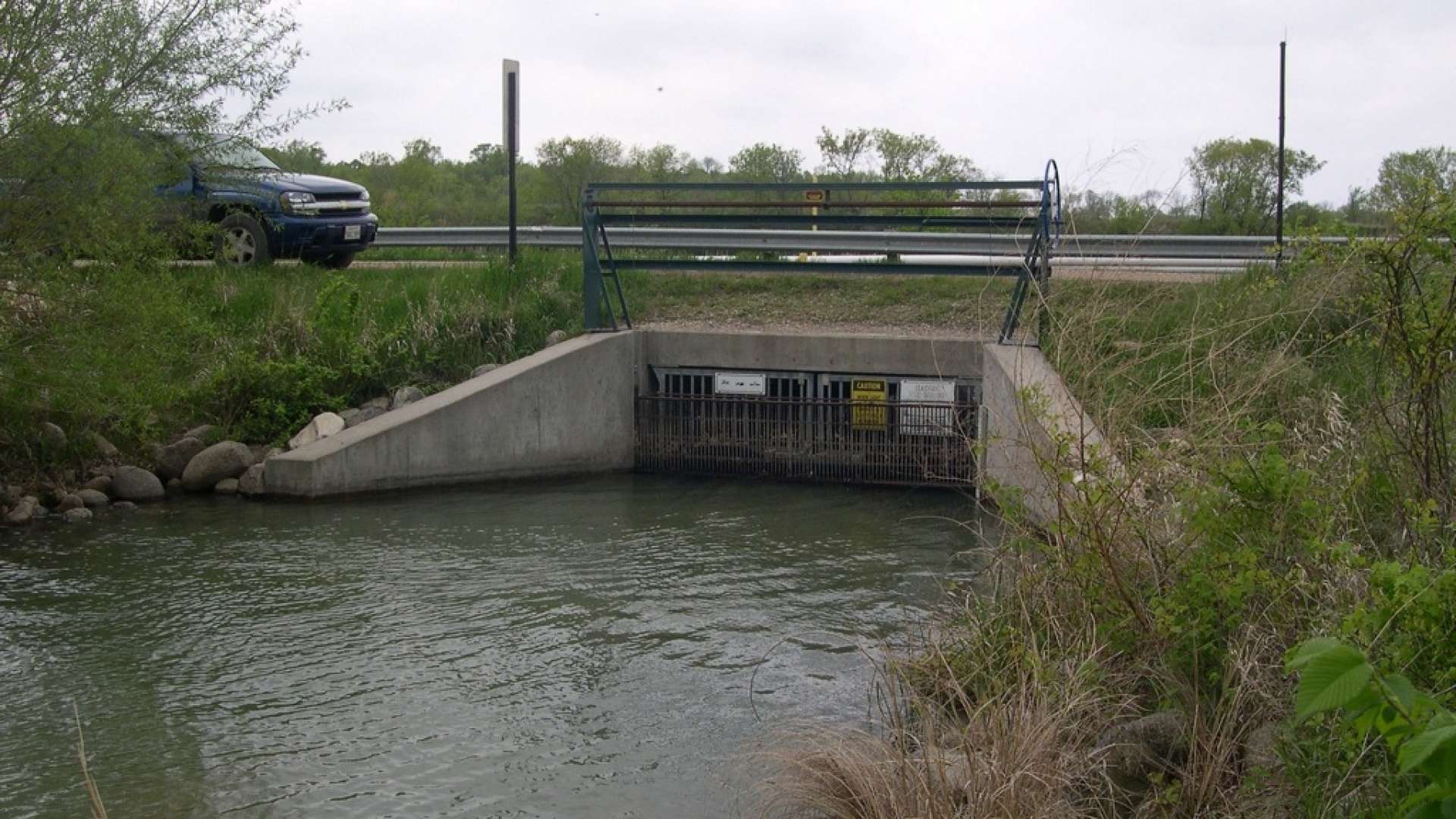

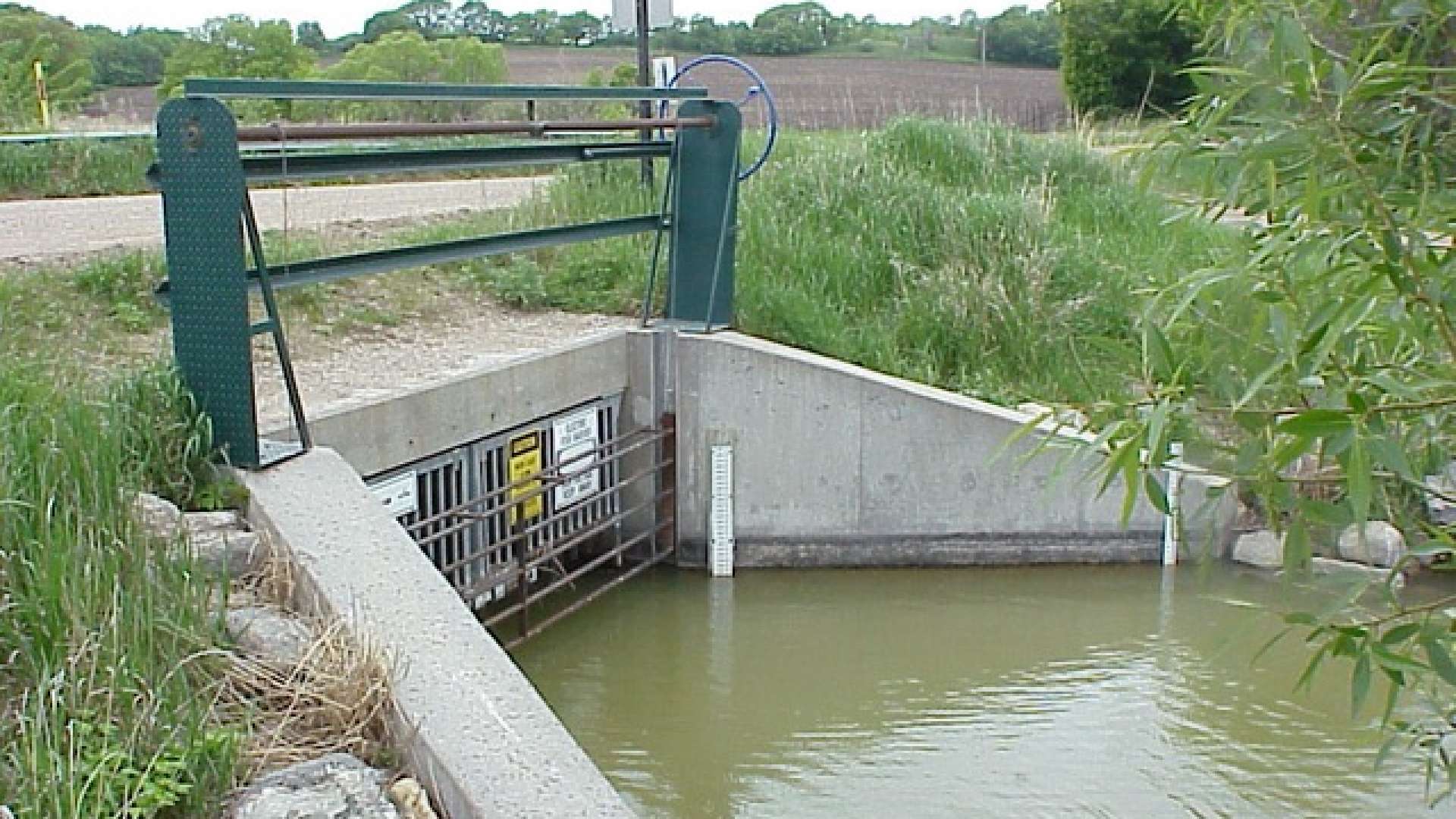

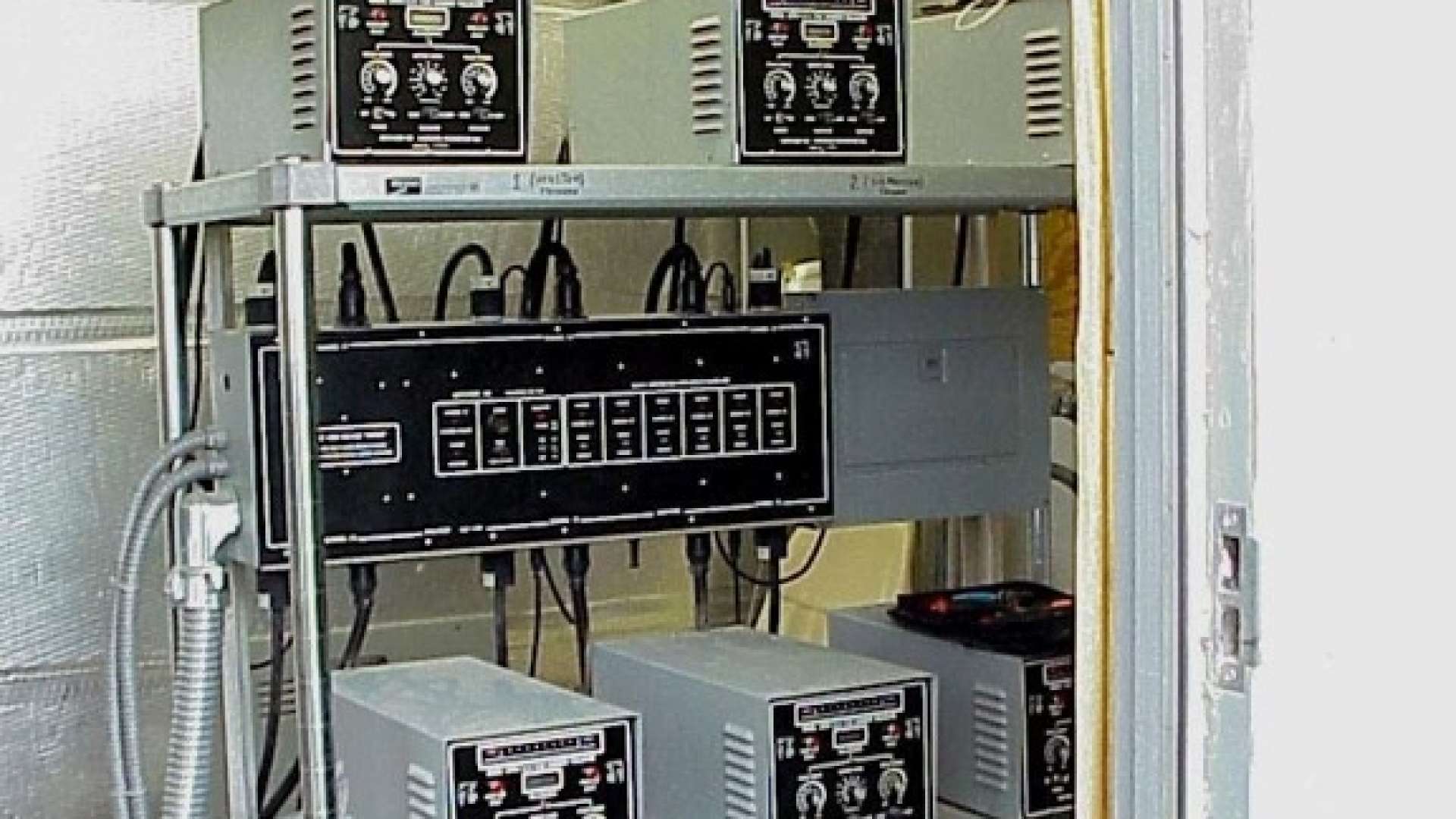

Steel gates at each end provide security. At the downstream end, an additional fish gate automatically drops down in the event of a power loss. Electronics are housed in a nearby small building.
Services Provided
- Coordination with Minnesota Department of Natural Resources
- Structural design of culvert
- Electrical and electronic design of the pulsators and power supply systems
- Construction of culvert and electrodes
- Supply of electronics
- Regular maintenance
Gallery
Click image to enlarge.
Location: Fergus Falls, Minnesota
Site Characteristics
| Pulsators | Pulsator Qty | Power Output | Water Depth | Waterway Width | Water Velocity | Conductivity |
|---|---|---|---|---|---|---|
| 1.5kVA GFFB | 6 | 9kW max. | 0-4 feet | 10 feet | 0-2 ft./s | 350 µs/cm max. |
Specifications subject to change without notice.
