Rainey Creek Barrier
Constructed: 2011
Classification: Waterway
Smith-Root provided the electronics for this barrier to divert migrating fish into a side trap for sorting.

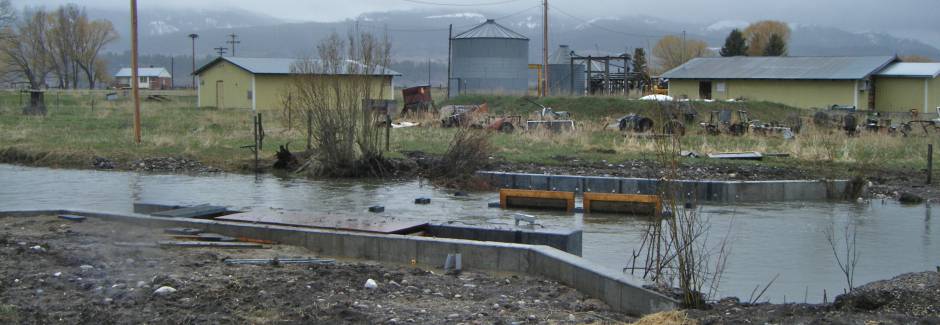

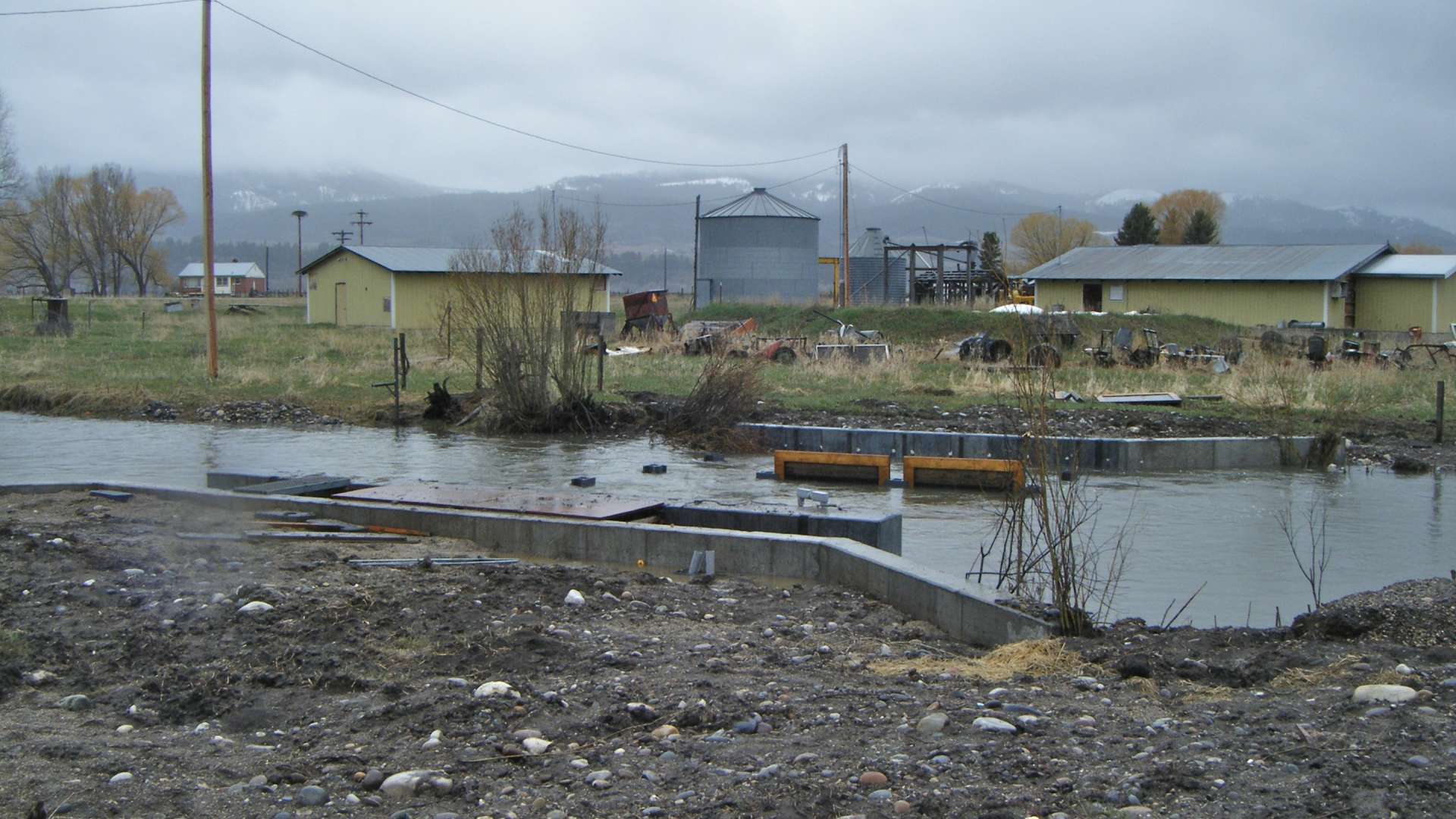

Following the success of the Palisades Creek and Pine Creek barriers, Idaho Fish and Game designed a third barrier for Rainey Creek in the same area. Its purpose is to divert all fish into a side trap so that non-native rainbow trout can be separated from the native cutthroat. Unlike the earlier two barriers, Rainey Creek Barrier is an entirely new structure located on a slow-flowing flood plain.
There are six U-shaped steel flat bar electrodes in grooves in the deck and side walls.
Services Provided
- Review of Idaho Fish and Game concept drawings
- Supply of electronics
- Consulting on discrepancies between theoretical and measured fields
Location: Swan Valley, Idaho
Site Characteristics
| Pulsators | Pulsator Qty | Power Output | Water Depth | Waterway Width | Water Velocity | Conductivity |
|---|---|---|---|---|---|---|
| 1.5kVA POW | 3 | 4.5 kW max. | 4 feet | 36 feet | 1 ft./s max. | 115 µs/cm max. |
Specifications subject to change without notice.
